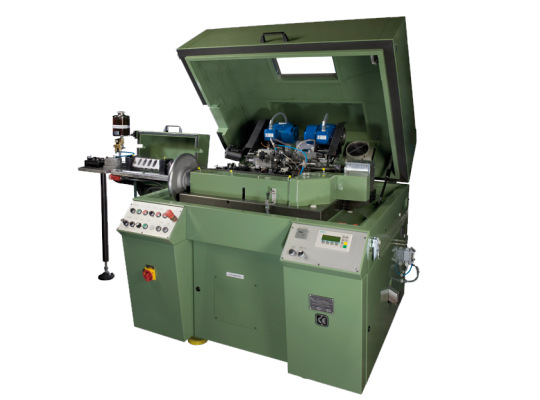

PrecisionShape MJE
The PrecisionShape MJE replaces conventional lathes for cylindrical parts for end machining and far exceeds them in speed. A lever system feeds the wire into the machine with great precision at a very high speed. The parts are cut by a bushing-on-bushing unit, after which they are conveyed to a transport plate, aligned and transported to the machining unit.
The machine can work both ends of the part simultaneously, achieving an output of up to 400 units per minute. The PrecisionShape MJE is suitable for wire diameters of 1 to 3 mm.
Technical features
1. Zero-vibration design
Vibration-free design with precision-ground linear guides for tool fitting. Infeed, cutting and machining are driven by three cams, using a split cam design.
2. High precision
Tight concentricity thanks to high-precision spindles.
3. Possible to switch tools
The tools and transport plate can be exchanged to adapt to changing wire diameters.
5. Enclosed housing
The closed machine housing keeps noise levels low and is easily accessible on all sides. Machine drive, electronics and central lubrication are integrated in the machine housing.
4. Flexible during straightening
Straightening can be performed by a rotating straightener and/or roller straightener.
