PrecisionCut UD
PrecisionCut UD is the comprehensive engineering series with a trusted and robust machine design. It provides good straightening results even for longer cut-offs. The series includes models for extremely thin wire diameters of 0.05 mm, extremely thick diameters of 16 mm and extremely long parts from 5 to 6,000 mm or longer. In addition, high-speed versions with an output of up to 2,000 units per minute are available.
The design is based on a stable cast body. The wire is fed by a clamping slide accurately driven by a camshaft, resulting in the ability to meet very tight length tolerances. A good straightening result is achieved due to the "on-the-fly" positioning of the cutting system on a clamping slide which transports the wire.
Technical features
1. Continuous wire feed
The wire infeed is cam driven. Clamping and cutting are operated by a curve system. Continuous wire infeed and "on-the-fly" or fixed cutting system depending on model.
3. Variable straightening
Straightening is done by a rotating straightener and/or roller straightener.
5. Special-purpose versions available
Special-purpose versions, e.g. for cutting tungsten at high temperatures or with blade cut, are available on demand.
2. Variable output
The speed, cutting ratio and number of units are programmable via the on-board PLC.
4. Enclosed housing
Models for working smaller wire diameters feature a closed machine housing that keeps noise levels low. Machine drive, electronics and central lubrication are integrated in the machine housing. Machines for working larger wire diameters feature a noise-suppressing cover.
More machines for straightening and cutting

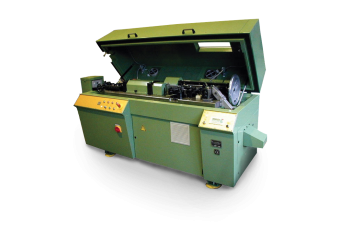

PrecisionCut MJC
PrecisionCut MJC is the series that offers a high output for short cut-offs.

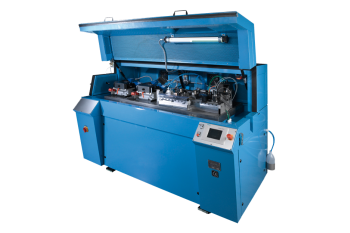

PrecisionCut MJCE
The PrecisionCut MJCE is a straightening and cutting machine powered by linear motors. It can process thin wires without contact with oil.
Do you want more information about the PrecisionCut UD?
Get in touch, we will be happy to help you.
